Lightweight 4500
BODIES THAT MOVE CANADA

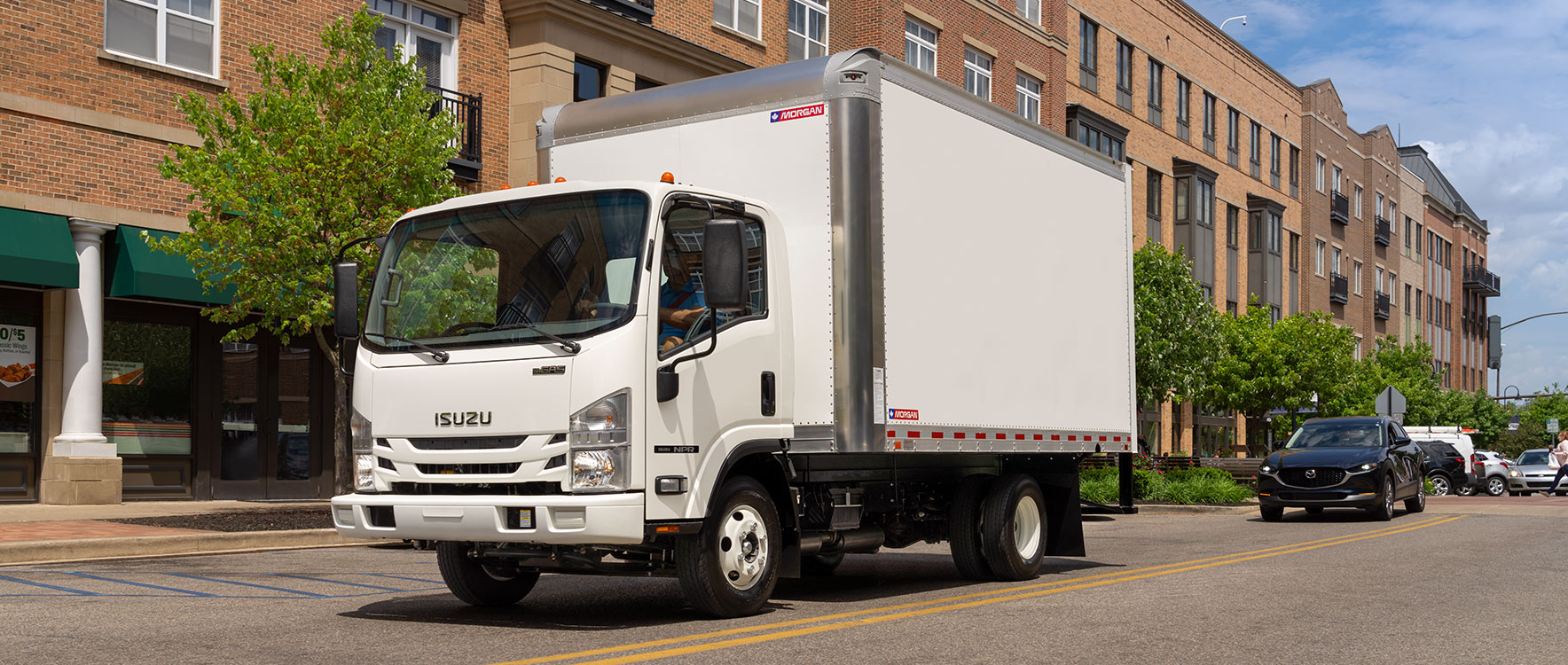

INTRODUCING THE NEW LIGHTWEIGHT DRY FREIGHT AND REFRIGERATED BODIES

Gold Star 4500 & Cold Star 4500

Proudly built in Canada, the new dry freight - Gold Star 4500 and refrigerated - Cold Star 4500 truck bodies are designed to help your business deliver in any provincial setting. Morgan 4500 bodies are designed with lightweight subframe, rear bumper and composite walls to help meet GVW restrictions and can reduce fuel usage.

Icon 1

READY FOR ANY PROVINCIAL
SETTING - NO SPECIALTY
DRIVERS LICENSE

Icon 2

LIGHTWEIGHT
MATERIALS

Icon 3

CORROSION
RESISTANCE

LIGHTWEIGHT Dry Freight
Gold Star 4500 Body

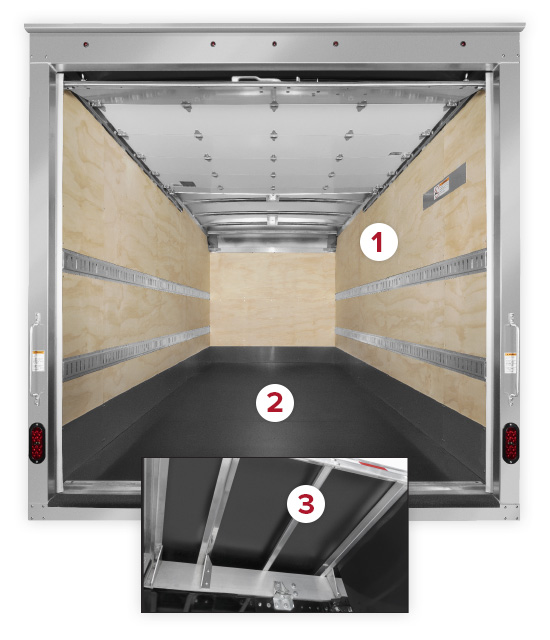

Dry Freight 4500
1 Plywood Liner with Steel Tie Bars
2 18mm Anti-Slip Multi-Ply Laminate Flooring
3 Aluminum Sub-Frame with Cross Members & Long Rails

DRY FREIGHT BODY SIZES:

  • 20’L x 97”H x 102”W Dry Freight with Bumper
  • 6.096mm L x 2.4638mm H x 2.5908mm W
  • 20’L x 97”H x 102”W Dry Freight with Liftgate
  • 6.096mm L x 2.4638mm H x 2.5908mm W
  • 22’L x 97”H x 102”W Dry Freight with Bumper
  • 6.7056mm L x 2.4638mm H x 2.5908mm W

DRY FREIGHT OPTIONAL FEATURES:

  • Special integrated tuck-a-way liftgate
  • Removeable walkramp
  • Composite wall liner
  • Aluminum scuff plate
  • Aluminum cargo track

AVAILABLE ON THE FOLLOWING CHASSIS:

  • HINO 195
  • ISUZU NRR

LIGHTWEIGHT Refrigerated
Cold Star 4500 Body

Refrigerated 4500

REFRIGERATED BODY SIZES:

  • 16’L x 85”H x 96”W Refrigerated
  • 4.8768mm L x 2.159mm H x 2.4384mm W

AVAILABLE ON THE FOLLOWING CHASSIS:

  • HINO 195
  • ISUZU NRR

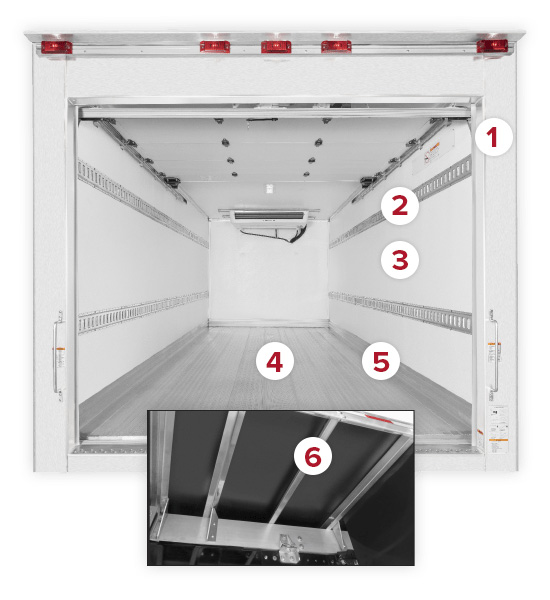

Features

1 Aluminum Rear Frame
2 Aluminum Cargo Track
3 Foam Core Panel with Glassboard
4 Aluminum Anti-Skid Inverted T Flooring
5 Aluminum Scuff Plate
6 Aluminum Sub-Frame with Cross Members & Long Rails
