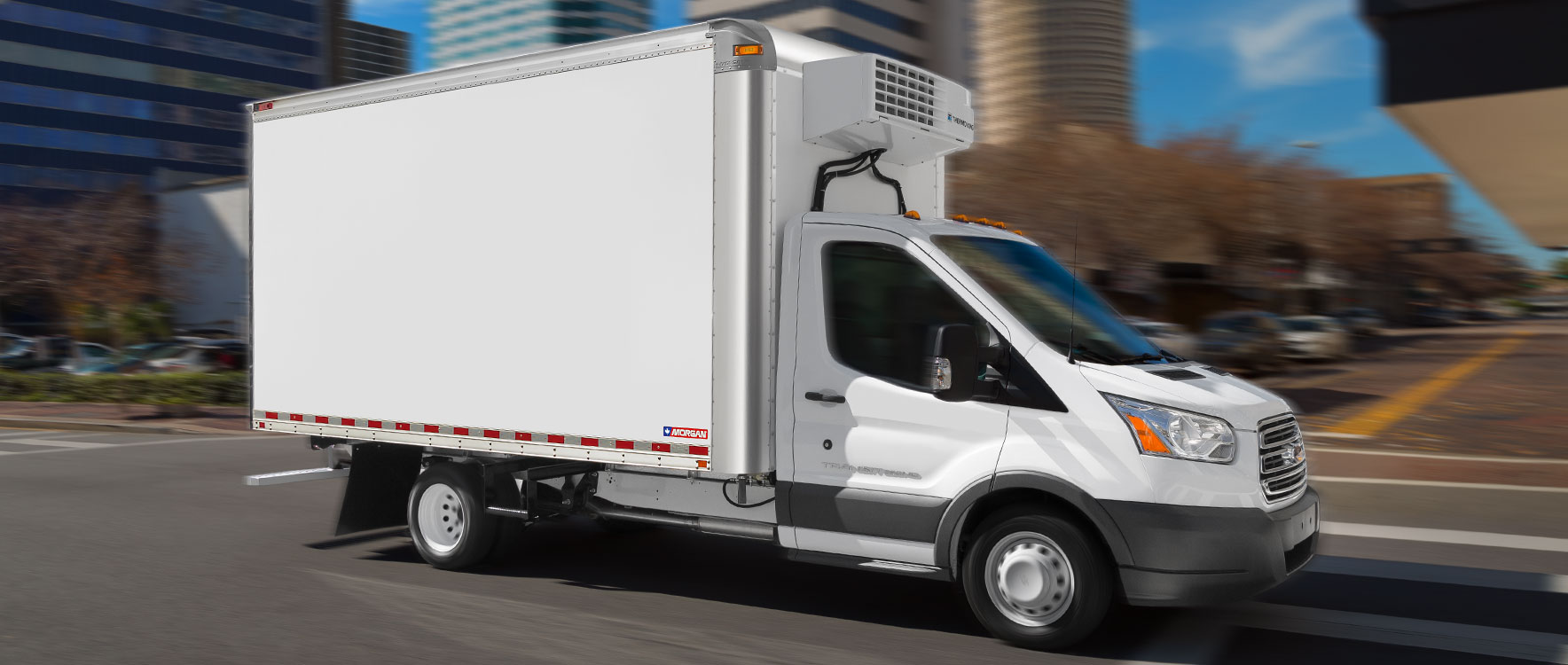

COLD STAR REFRIGERATED
COMPOSITE

FEATURES & BENEFITS:

• Improved Durability and Longevity with Body constructed of composite materials and aluminum in lieu of wood and steel. Improved corrosion resistance
• Lighter weight than standard refrigerated bodies to help increase payload availability
• WALL CONSTRUCTION: Insulated foam core panels, with foam core battens
• SUBFRAME: Aluminum
• FLOOR: Standard T Floor with option to upgrade to hat floor
• Slip resistant, composite reinforced rear door threshold with thermal break (Minimizes door threshold condensation)
• DOORS: Optional overhead door or panel swing door
• REAR FRAME: Stainless steel
• BUMPER: 10 drop-step all-aluminum bumper
• ROOF: Aluminum
• SCUFF: 6 extended aluminum scuff with option to add additional scuff in 6 increments
• INTERIOR LINER: Glass board
• EXTERIOR LIGHTING: FMVSS 108 compliant

BODY SPECIFICATIONS:

• Body heights = 79"/85"
• Body lengths = 12'/14'/16'
• Body widths = 90"/96"
• Applicable chassis apply

INSULATION FEATURES:

• SIDEWALL: 3" foam
• FRONT WALL: 4" foam
• CEILING: 3" foam
• FLOOR: 3" foam between the sills
